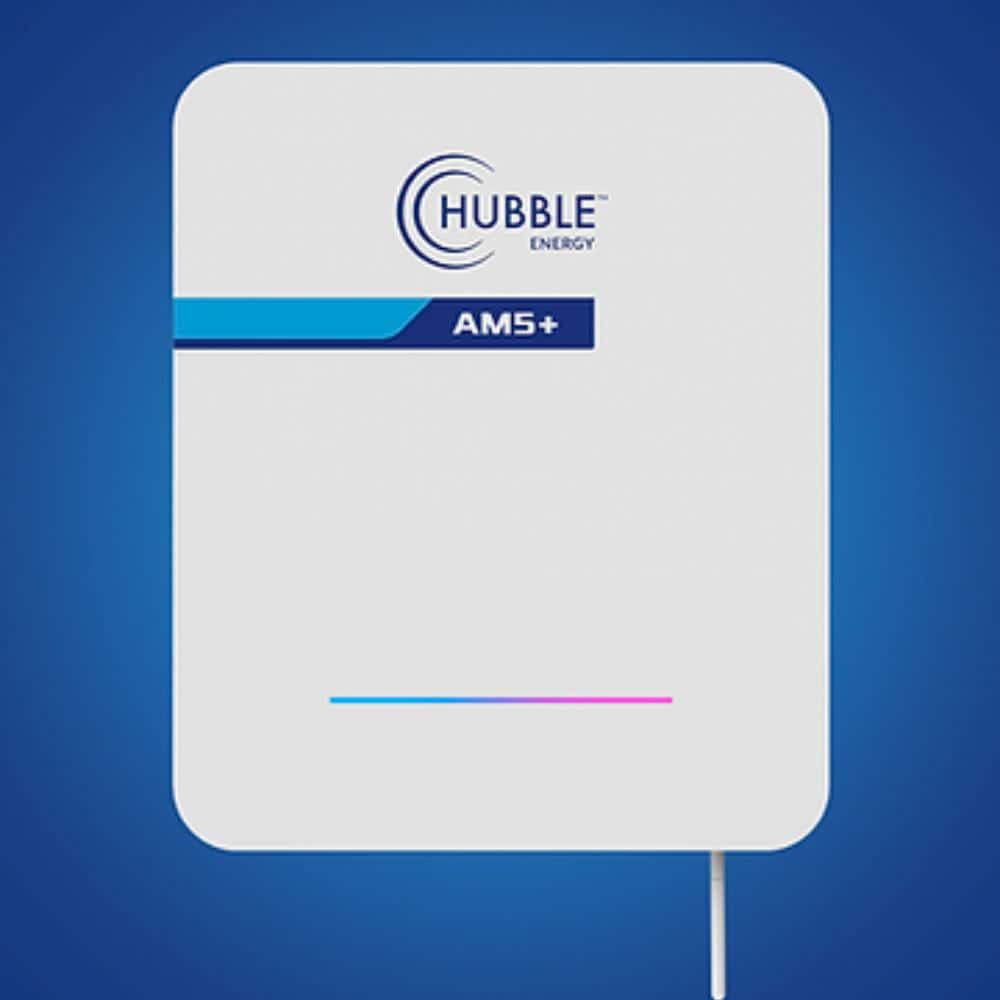

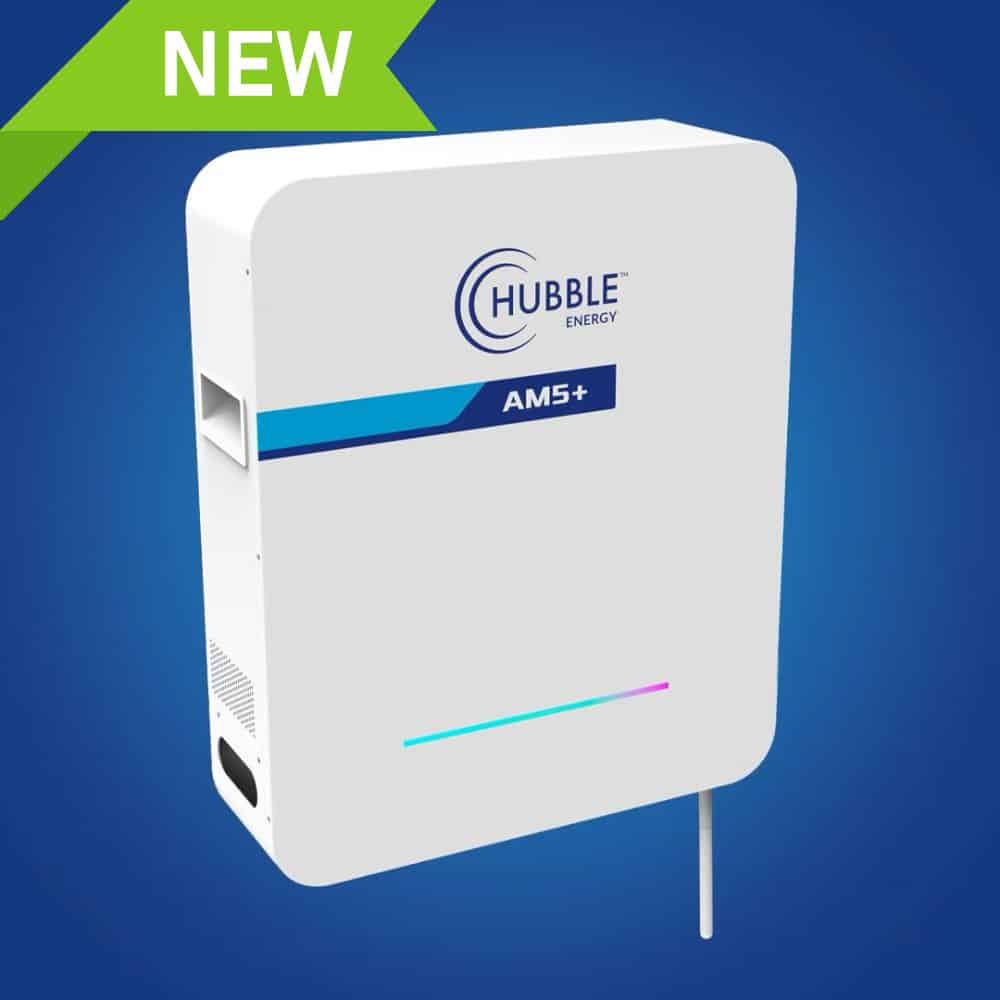

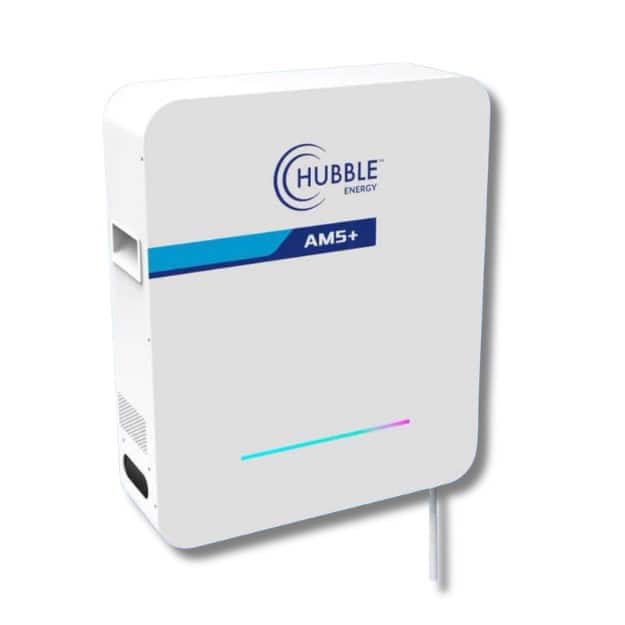

Hubble AM-5+ LiFePO4 5.12kWh 51.2V Battery (2026)

The AM-5+ is the latest addition to the Hubble Energy battery range and is fully compatible with the original Hubble AM-5 battery via Cloudlink.

The Hubble AM-5+ LiFePO4 Battery – (5.12kWh) has the following unique features:

Key Features:

• Informative RGB LED Display strip
• Low self discharge
• High cycle and service Life
• 1C High performance lithium battery
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Complete with integrated Battery Management System
• Hubble Cloudlink integration ready for cloud monitoring
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
• CAN Bus, fully integrates and communicates with leading Inverter brands
• Warranty: 10 Year/ Unlimited Cycles

Technical Specifications:

• Rated Capacity (5HR):  100Ah
• Nominal Voltage: 51.2V
• Design Capacity: 5.12KWH
• Equalized Charge Voltage: 55.2V
• Continuous Charging Current: 100A
• Continuous Discharging Current: 100A
• C Rating: 1C
• Weight: Approx. 51kg
• Monitoring: Hubble Cloudlink
• Parallel: Parrallel connection up to 8 packs with full communications
• Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm
• Ports: CAN-bus, Battery Link Ports
• Cells: Prismatic LiFePO4
• Design Life: ± 15 Years
• Certification: CE IEC UN38.3
• Outer Package Material: White Bake Lacquer Steel Case
• Operating Temperature:

• Charging: -10°C to +50 °C
• Humidity: 15% to 75%
• Storage: 10°C to +50°C

• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

 UNLIMITED CYCLES WITHIN THE HUBBLE LITHIUM 10 YEAR WARRANTY. (Ts & Cs Apply)
