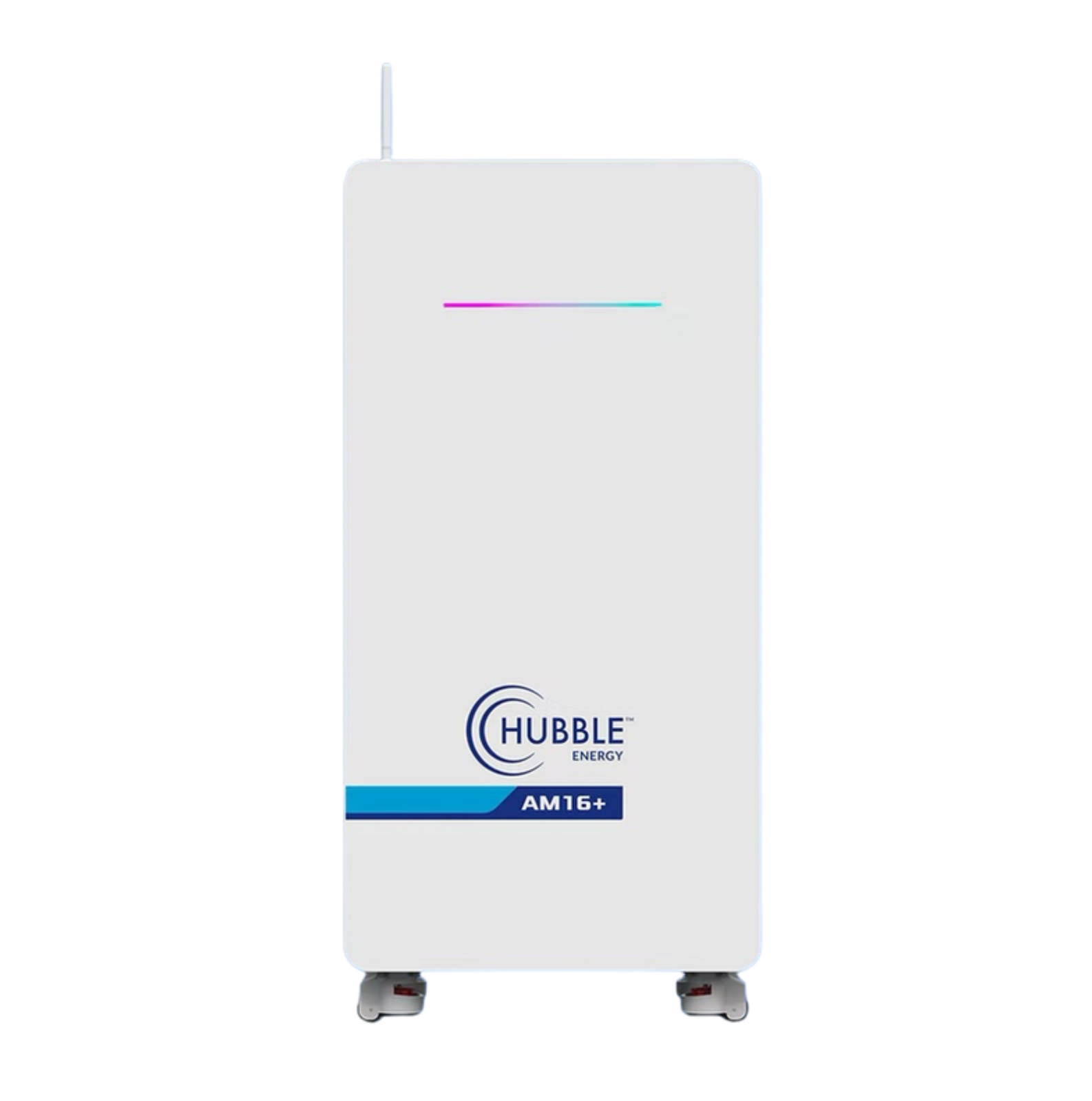

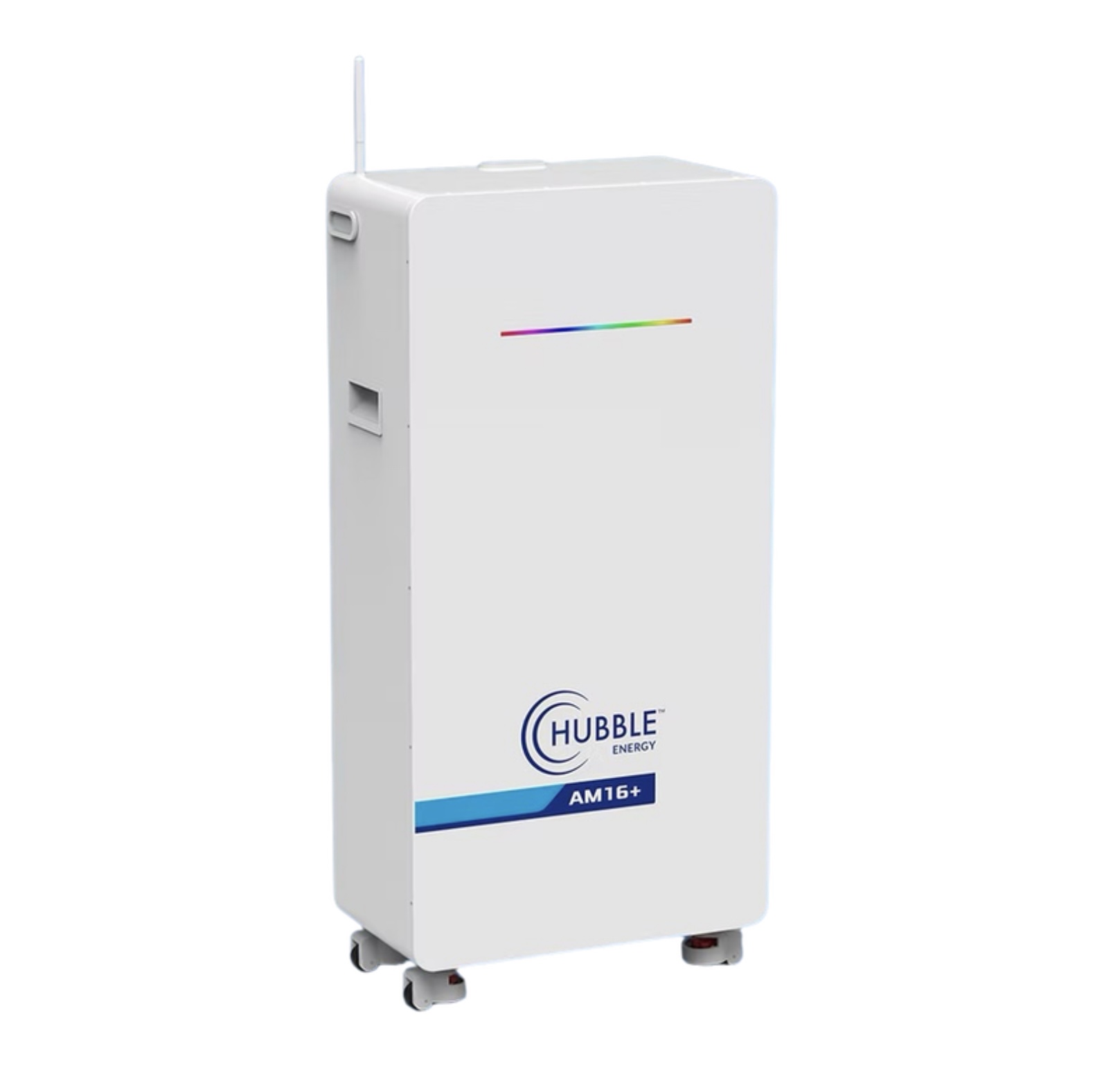

Hubble AM-16+ LiFePO4 battery – 16kWh 51.2V

Hubble AM-16+ LiFePO4 battery – 16kWh 51.2V

• Integrated 24/7 Monitoring with the Hubble Cloudlink
• Informative RGB LED Display Strip
• Low center of gravity design, with anti-tip features. Models include wheels for mobility. Place directly on floor.
• LFP Prismatic cells
• 10 Year Unlimited Cycle Warranty (Ts & Cs Apply)
• Parallel up to 15 units with full comms

Key Features:

• Low self-discharge

• High cycle and service life

• Lockable wheels for mobility

• Place directly on floor

• Excellent high-temperature performance

• 10 Year Unlimited Cycle Warranty (Ts & Cs Apply)

• Advanced BMS with current limiting function

• High energy density and conversion efficiency

• Informative LED strip display

• Parallel up to 15 units with full comms

• Integrated 24/7 monitoring with the Hubble Cloudlink

• Built-in protection for over-charge, over-discharge & over-temperature

• CAN Bus fully integrates and communicates with leading Inverter brands

  Technical Specifications:

  • Rated Capacity: 314Ah

  • Nominal Voltage: 51.2V

  • Design Capacity: 16.1kWh

  • Max. Continuous Charging Current: 130A

  • Max. Continuous Discharging Current: 157A

  • Inverter Cut Off Voltage: 49 V (recommended) / 47 V (minimum)

  • Weight: Approx. 131.5kg

  • Monitoring: Built-in Cloudlink

  • Parallel: Parallel connection up to 15 packs with full communications

  • Cell balancing: Passive – activated once cells are close to full charge voltage

  • Intelligent current limiter: Limits charging current to 20A if it exceeds 137A.

  • Dimensions (HxWxD): 970mm x 500mm x 260mm

  • Communication: CAN / RS485 / RS232

  • Cells: Prismatic LiFePO4

  • Design Life: ± 15 Years

  • Cycle Life: UNLIMITED CYCLES WITHIN THE HUBBLE ENERGY 10-YEAR WARRANTY. (Ts & Cs Apply)

  • Certification: CE, UN38.3

  • Outer Package Material: White Bake Lacquer Steel Case

  • Operating Temperature

  • Charging: -10°C to 50 °C

  • Humidity: 15% to 75%

  • Storage: 10°C to 50°C

  • Protection: Over charge; over discharge; over current; short circuit; over and under temperature
