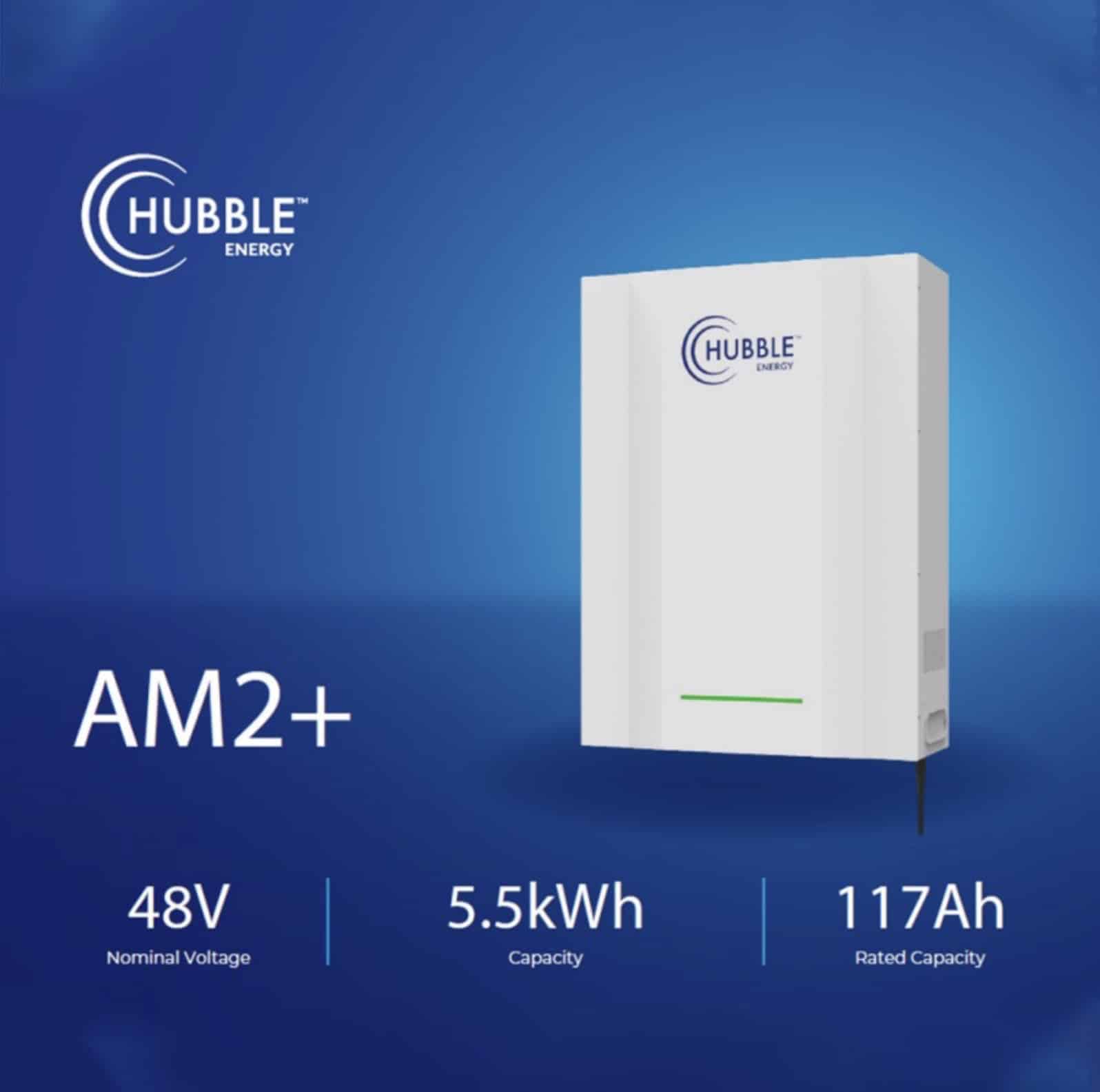

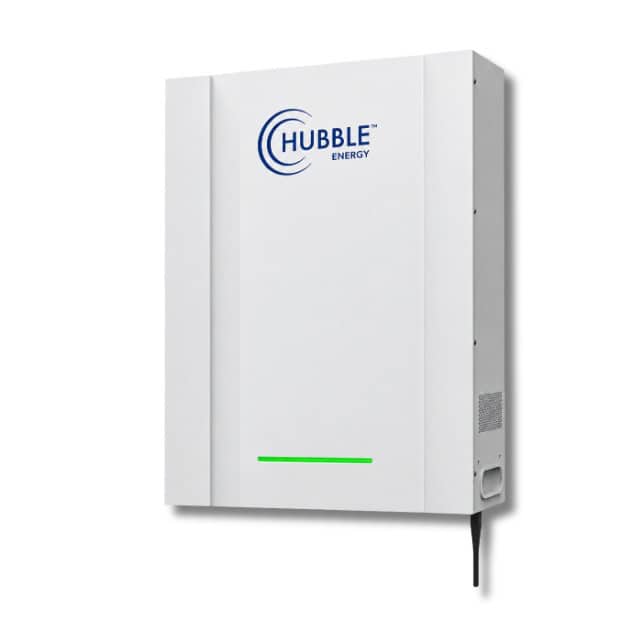

Hubble AM-2 Lithium Battery 5.5kWh 48V – Wall Mountable

Original price was: R19,995.00.Current price is: R16,325.00. (incl. VAT)

South African rand (R) - ZAR
  • South African rand (R) - ZAR
  • Zambian kwacha (ZK) - ZMW

Hubble AM-2 Lithium Battery 5.5kWh 48v – Wall Mountable

The Hubble AM-2 Lithium Battery 5.5kWh 48V  is an excellent choice for your load-shedding and back-up power setup at your Home or Business. With a high cycle and service life, this wall & rack mountable battery provides 5.5kWh of power storage and is capable of giving you worry free power for years with a 15 year + design life.

Warranty: 10 years / 3000 cycles

Hubble Battery user Guides and Manuals:



14 in stock

Do you need assistance selecting the right product? Contact us today.
Neil:  +27 72 690 2734


Product PDFs

XXL
Description

Hubble AM-2 Lithium Battery 5.5kWh 48v – Wall Mountable

The Hubble AM-2 Lithium Battery 5.5kWh 48V  is an excellent choice for your load-shedding and back-up power setup at your Home or Business. With a high cycle and service life, this wall & rack mountable battery provides 5.5kWh of power storage and is capable of giving you worry free power for years with a 15 year + design life.

Features:

  • Low self discharge

  • High cycle and service life

  • Easy wall mount or shelf rack installation

  • Excellent high temperature performance

  • Advanced BMS with current limiting function

  • Compatible with most inverters and chargers

  • High energy density and conversion efficiency

  • Cloudlink integration ready for wifi monitoring

  • Complete with integrated Battery Management System

  • Heavy duty side handles for easy handling and mounting on the wall

  • Built in protection for over-charge, over-discharge & over-temperature

  • CAN Bus, fully integrates and communicates with leading Inverter brands

Technical Specifications:

Rated Capacity (5HR): 116Ah

Nominal Voltage: 48V

Design Capacity: 5.5kWh

Equalised Charge Voltage: 53.8V

Max. Continuous Charging Current: 105A

Max. Continuous Discharging Current: 105A

C Rating: 1.0C

Weight: Approx. 42kg

Display: None

Parallel: Parallel connection up to 15 packs with full communications

Dimensions (WxDxH): 375mm x 145mm x 467mm

Ports: 1 x CAN-bus, 2 x Battery Link Ports

Cells: New Li-ion Prismatic Cells

Design Life: ± 15 years

Cycle Life @ 1C: +/- 6000 cycles @ 50% DOD, Above 3000 cycles @ 100% DOD

Certification: CE, UN38.2, GBT31484-2015, GBT31485-2015, GBT31486-2015

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

  • Charging: 0°C to 55°C

  • Discharging: -20°C to +55°C

  • Storage: -20°C to +55°C

Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting

Hubble Battery user Guides and Manuals:



Additional information
Weight 42 kg
Dimensions 44 × 43 × 17 cm
Battery Type

Lithium-Ion

Rated Capacity

100 Ah

Nominal Voltage

48V

Battery Capacity

5.5kWh

Brand

Hubble Lithium

Warranty Details

Hubble AM-2 Lithium Battery 5.5kWh 48V - Warranty:

The Hubble AM-2 battery has a 10 Year / 3000 Cycle warranty - whichever comes first

Click here for Hubble AM-2 warranty details



Technical Specifications

The Hubble AM-2 Lithium-Ion Battery - (5.5kWh) has the following unique features:

  • Advanced BMS with current limiting function
  • CAN Bus, fully integrates and communicates with leading inverter brands
  • Excellent high temperature performance
  • High Cycle Life and Service Life
  • RIOT integration ready for cloud monitoring
  • 1C High Performance Lithium Battery
  • Internal Fire Suppression System
  • High Energy Density and conversion efficiency
  • Complete with integrated Battery Management System
  • Compatible with most Inverters and chargers
  • Low self discharge
  • Easy wall mount or shelf rack installation
  • Heavy duty handles for easy handling
  • Built in protection for over-charge, over-discharge and over-temperature



Specification: 48V  5.5KWh

Rating: 1C

Parallel: up to 15 units per string

Extras: Battery Link & DC cables included

​Internal Fire Suppression System: Yes

​CAN Bus: Yes

Hubble Cloudlink Ready: Yes

Hubble AM-2 Lithium-Ion Battery Technical Sheet

Hubble AM-2 Lithium-Ion Battery User Manual

Model: Hubble AM2

C Rating: 1C

Voltage: 48.0V

Rated Capacity (5HR): 110Ah

Discharge Cut-off Voltage: 42V

Max Continuous charging current: 100A

Display: None

Dimensions (mm): (W X D X H) - 375 x 145 x 467

Weight: 42

Parallel: Up to 15 packs with full communication

Design Life: ± 15 years

Cycle Life @ 1C: ± 3000 cycles @ 100% DOD, ± 6000 cycles at 50% DOD

Protection: Electronic circuit breaker, BMS Voltage Protection, Current Limiting
