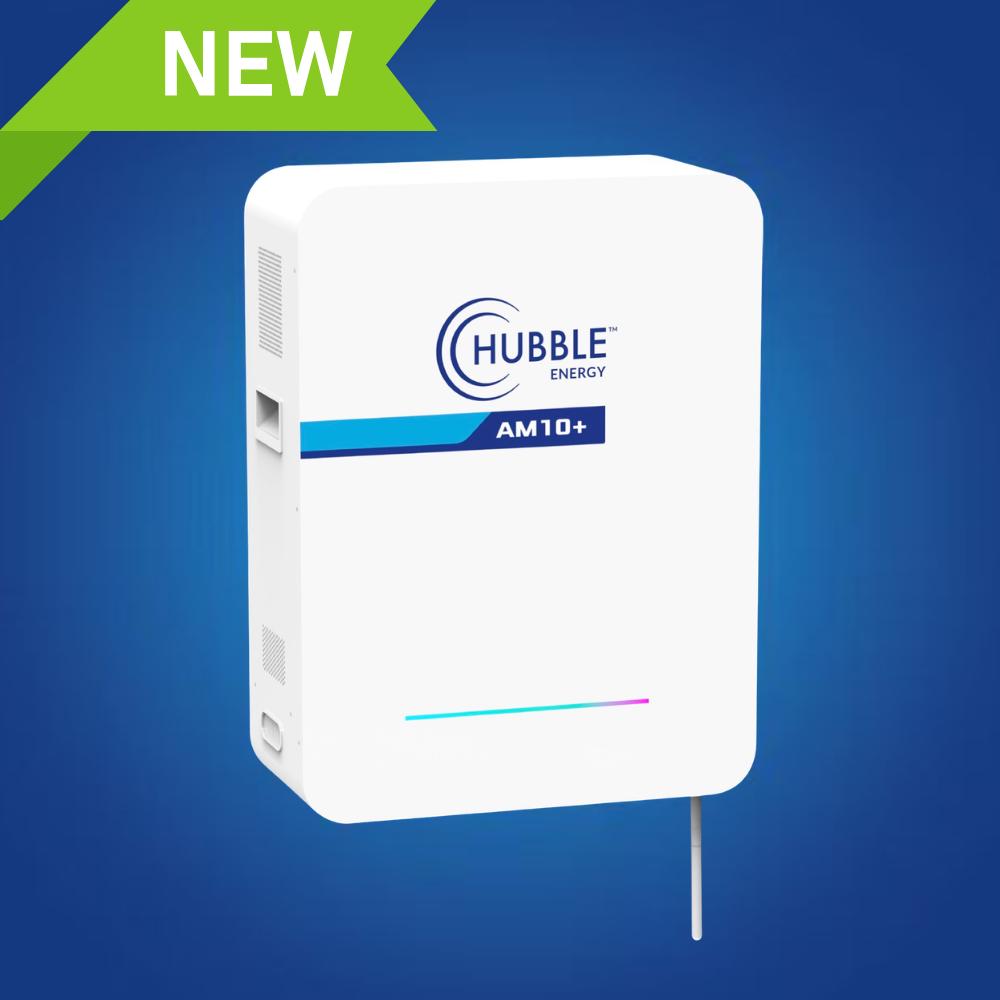

Hubble AM-10 Lithium Battery 10kWh 51.2V – Wall Mountable
Superior Lithium-iron phosphate (LiFePO4) cells make the Hubble Battery AM-10 another exceptional addition to the popular Hubble AM series!
This model is two times bigger than the new Hubble AM-5, featuring a massive 10kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink
Features:
- Low self discharge
• High cycle and service life
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• 0.75C High performance lithium battery
• Advanced BMS with current limiting function
• Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Complete with integrated Battery Management System
• Hubble Cloudlink integration ready for cloud monitoring
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
• CAN Bus fully integrates and communicates with leading Inverter brands
Technical Specifications:
Model: Hubble AM-10
Rated Capacity (5HR): 200 Ah
Nominal Voltage: 51.2 V
Design Capacity: 10 KWH
Equalized Charge Voltage: 55.2 V
Max. Continuous Charging Current: 150 A
Max. Continuous Discharging Current: 150 A
C Rating: 0.75 C
Weight Approx: 89 Kg
Monitoring Optional: Cloudlink
Parallel: Parallel connection up to 8 packs with full communications
Dimensions: (WxDxH) mm 673mm x 618mm x 193mm
Ports: CAN-bus, Battery Link Ports
Cells: Prismatic LiFePO4
Design Life: +/- 15 Years
Cycle Life: Unlimited cycles within the Hubble Lithium 10 year warranty. Ts & Cs Apply.
Certification: CE IEC UN38.3
Outer Package Material: White bake lacquer steel case
Operating Temperature: Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limitin
